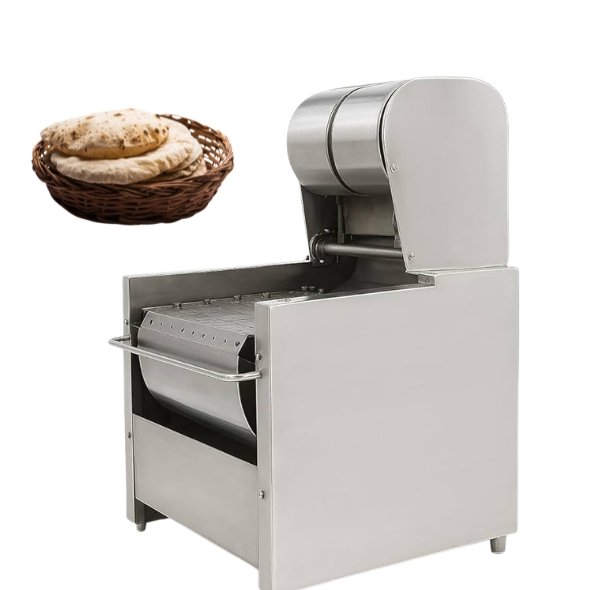

Heavy-duty commercial chapati maker. Integrates a pneumatic dough presser with dual-sided thermal burners to output fresh, fully baked chapatis at high volumes.
Heavy-duty commercial chapati maker. Integrates a pneumatic dough presser with dual-sided thermal burners to output fresh, fully baked chapatis at high volumes.
RG Machinery offers high-caliber engineering systems custom built to lower your operation overheads while scaling commercial output. Each machine is designed under strict quality control standards ensuring high-yield, continuous manufacturing operation, and maximum lifetime durability.
| Automation Operating Grade | Fully Automatic (Continuous pneumatic pressing & thermal baking sequence) |
| Chapati Diameter Adjustability | 4 Inches to 8 Inches |
| Thermal Process Architecture | Dual Side Burners coupled with High-Efficiency Electric Heating Coils |
| Operator Interface Console | Digital Temperature & Conveyor Speed Controller system |
| Advanced Plant Safety Features | Industrial Emergency Auto-Stop switch & Electronic Overload Protection relays |
| Electricity Working Load | 3.5 KW |
| Power Requirement Standard | 220V / Single Phase grid lines |
| Mass Hourly Yield Capacity | 800 to 1000 freshly baked chapatis / hour |
| Machine Total Weight | Approx. 350 KG structural weight |
| Body Frame Material | 100% Food Grade Stainless Steel panels |
| Floor Space Footprint Required | 10 FT x 6 FT |
