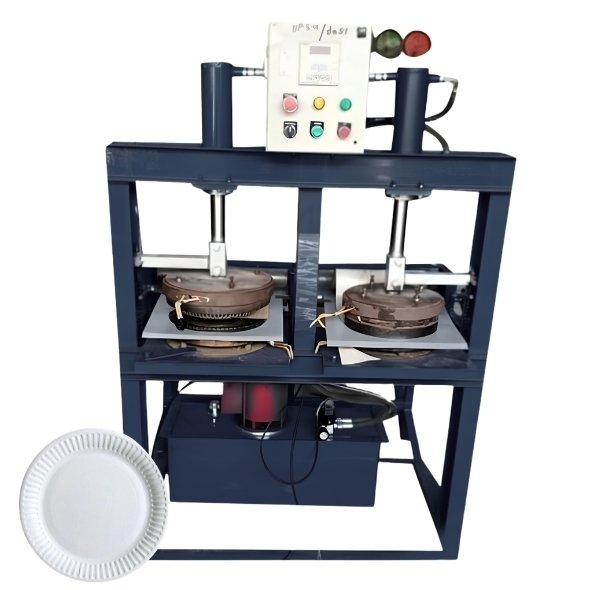

High performance paper plate machine featuring a single centralized hydraulic cylinder driving two active dies. Fully adjustable heating control systems ensure clean shapes.
High performance paper plate machine featuring a single centralized hydraulic cylinder driving two active dies. Fully adjustable heating control systems ensure clean shapes.
RG Machinery offers high-caliber engineering systems custom built to lower your operation overheads while scaling commercial output. Each machine is designed under strict quality control standards ensuring high-yield, continuous manufacturing operation, and maximum lifetime durability.
| Configuration | 1 Centralized Hydraulic Cylinder driving 2 active Dies |
| Production Output Rate | 2,500 - 4,000 pieces / hour (varies by size & GSM) |
| Die Size Flexibility | 4 to 14 inches (fully adjustable & interchangeable) |
| Paper Material Compatibility | 80 to 500 GSM (laminated, silver, and craft paper) |
| Power Used Range | 2.5 kW - 3.5 kW (includes integrated die heating elements) |
| Voltage | 220V / 50Hz Standard Single Phase |
| Hydraulic Oil Tank Capacity | 35 - 50 Liters tank |
| Motor Specification | 2 HP (1440 RPM; Single or Three Phase options) |
| Total Machine Weight | Approx. 300 to 450 KG |
